Network

Intended to test the network interface of the device, whether it is connected properly and can access the server on the network.

• Device with wifi network interface.
• Device with ethernet network interface (optional).

The module features three distinct LED indicators, each corresponding to a specific network test:

• Connection : This indicator verifies the device’s connection to the network access point.
• Server API : This indicator confirms a successful response from the TestQC Server API over the network.
• Server Ping : This indicator tests the device’s ability to reach the server by performing a ping test to TestQC API server.

All three indicators should ideally be green. However, the most critical test is the Server API response, as this connection is essential for saving test results.

Network Connectivity
The primary purpose of the test module is to ensure the device can successfully communicate with the TestQC Server API. This communication is critical for saving test results, regardless of whether the server is located on a local network or accessed via the internet. Both local and internet-based configurations are supported.

Failed Server API Response

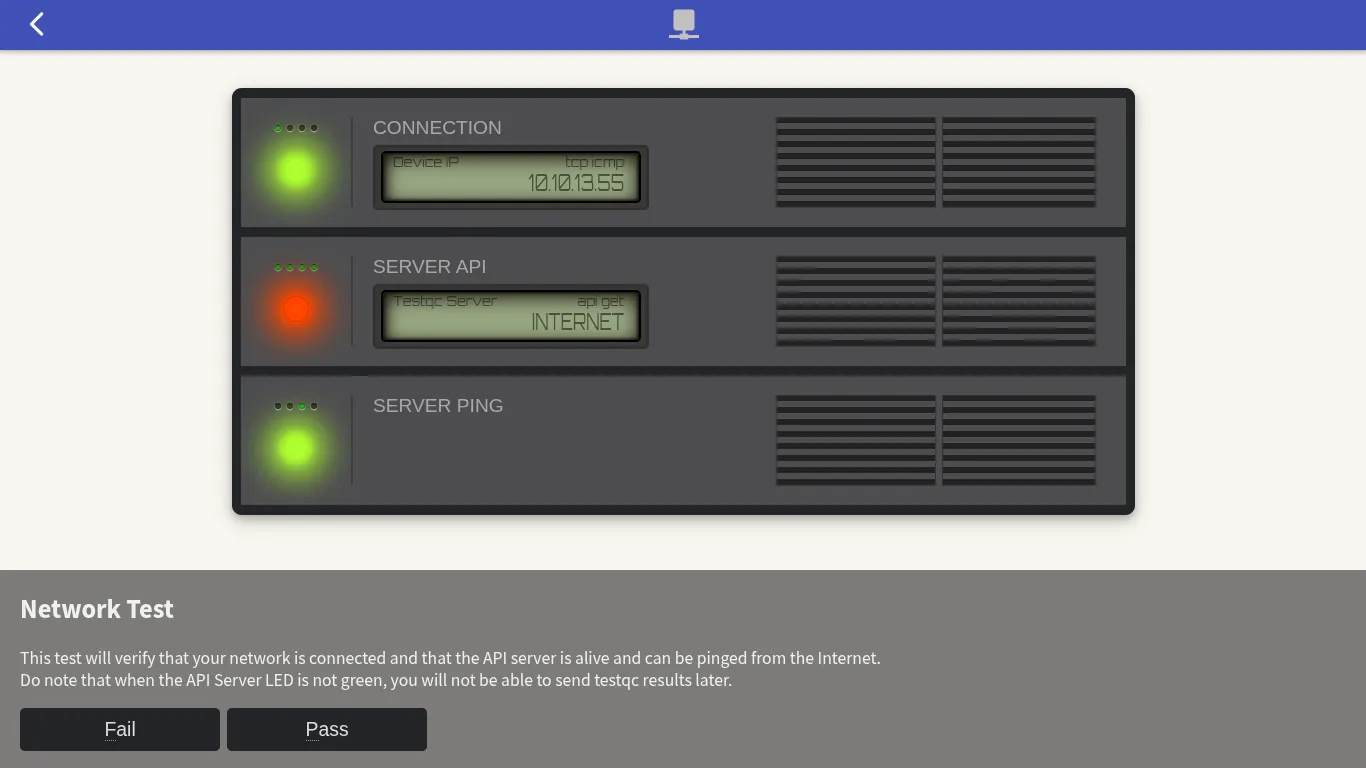

If the TestQC Server API indicator is red, as shown in the provided image, the device is unable to save test results. It is crucial to ensure this indicator is green before proceeding with any further testing.
